Castolin dyomix 2.4

Castolin dyomix 2.4
We offer for sale our Castolin dyomix OHM 2.4 Showroom demonstration model.
CleanTech dyomix® easily breaks down water into its gaseous components, oxygen and hydrogen. The innovative dyomix technology produces a ready-to-use fuel gas that burns with a clean, low-odour, high-efficiency flame.
The flame is hot to over 2,500°C and is ideally suited to the requirements of professional users who use a gas burner in their daily work and want to be independent of a gas supply. It is no longer necessary to store bottled gas.
Benefits
Mobile, intelligent and safe gas generator with innovative Dyomix® technology.
Ergonomic, easy-to-handle burner
High-efficiency flame: 2,500°C
Easy to transport and handle
Gas generation at the touch of a button, no need to store.
Optimum gas quality thanks to pre-setting (no need to mix gases).
Built-in intelligence with several operating modes, numerous functions and production data.
Technical data
Hydrogen/oxygen production
operating pressure: up to 1.4 bar
maximum flow rate: 550 l/h
operating time: approx. 1 hour
flame temperature: 2,500°C
Power, water and additive
Single-phase alternating current: 230 Vac - max 11 A
Rated power: 2.4 kW (BOOST mode)

Water consumption: 0.25 l/h (normal mode)
Additive consumption: 0.10 l/h (normal mode)
Gjc R I Nqjv T Ty Esl Usbl
Safety and confirmation
Degree of protection: IP21
Safety marking: CE
Fire classification of plastic housing: UL94 V2 and HB
Dimensions and weight
Unit dimensions LxWxH: 395 x 360 x 960mm
Weight: 38 kg

Price = €1,500 plus VAT

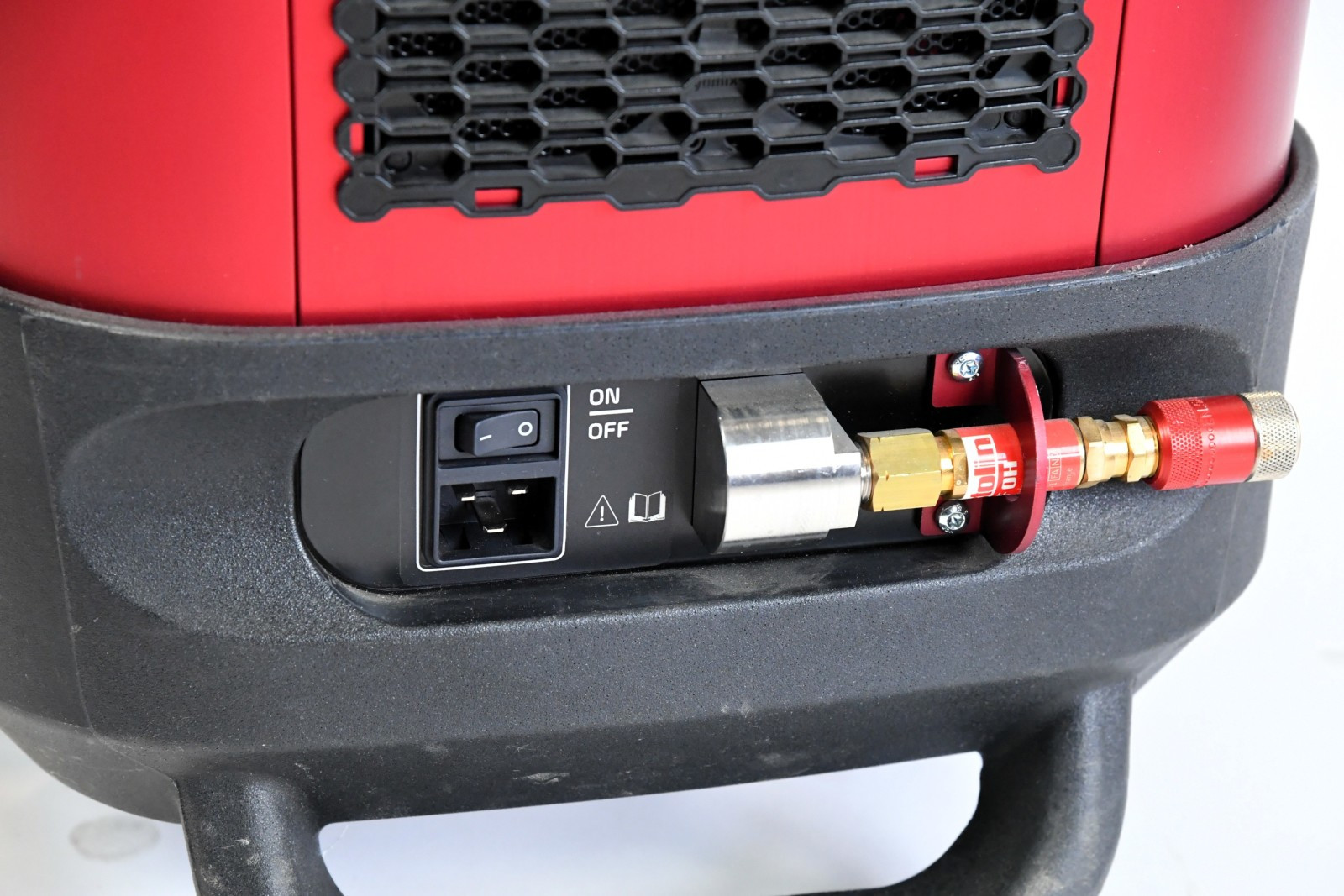

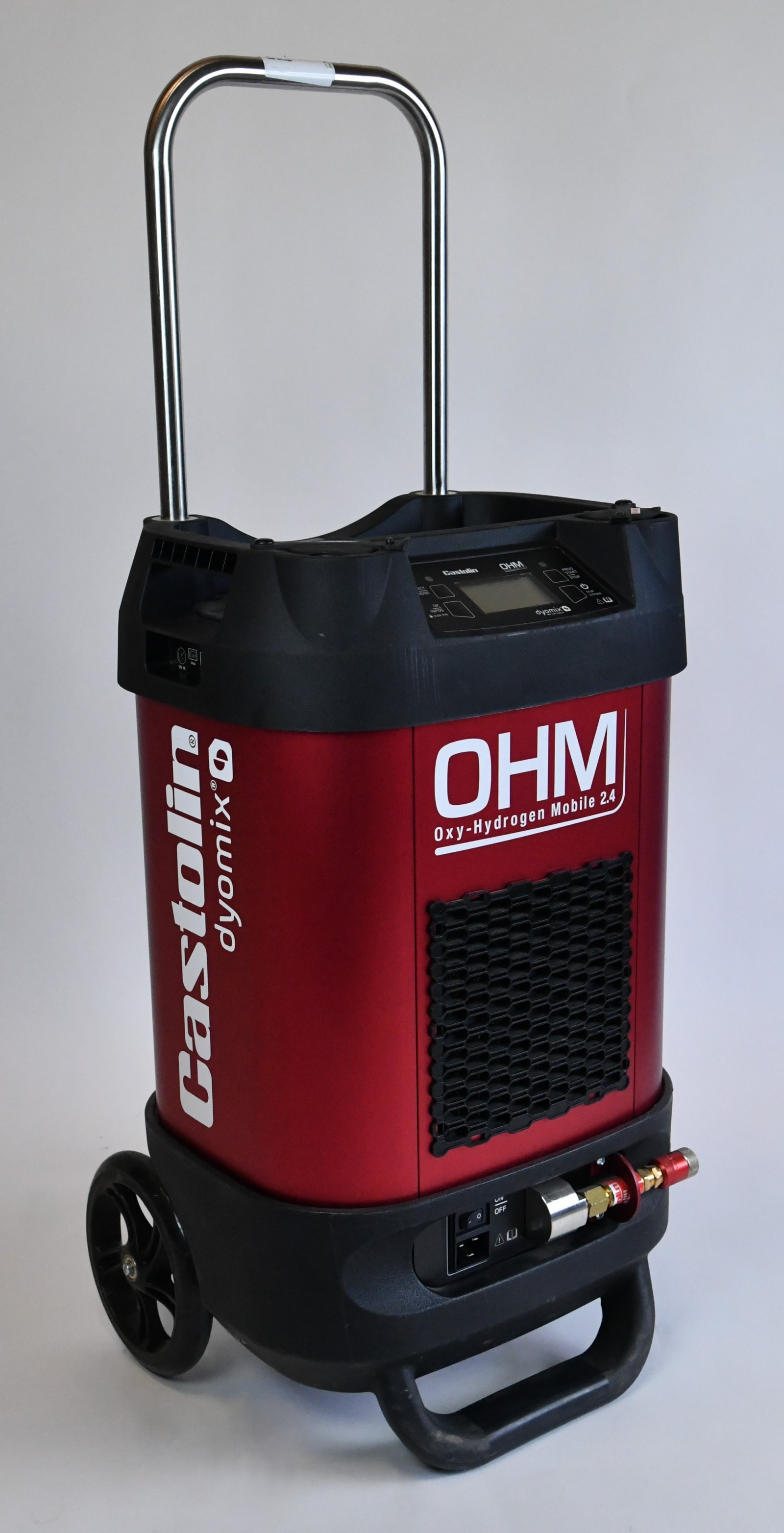

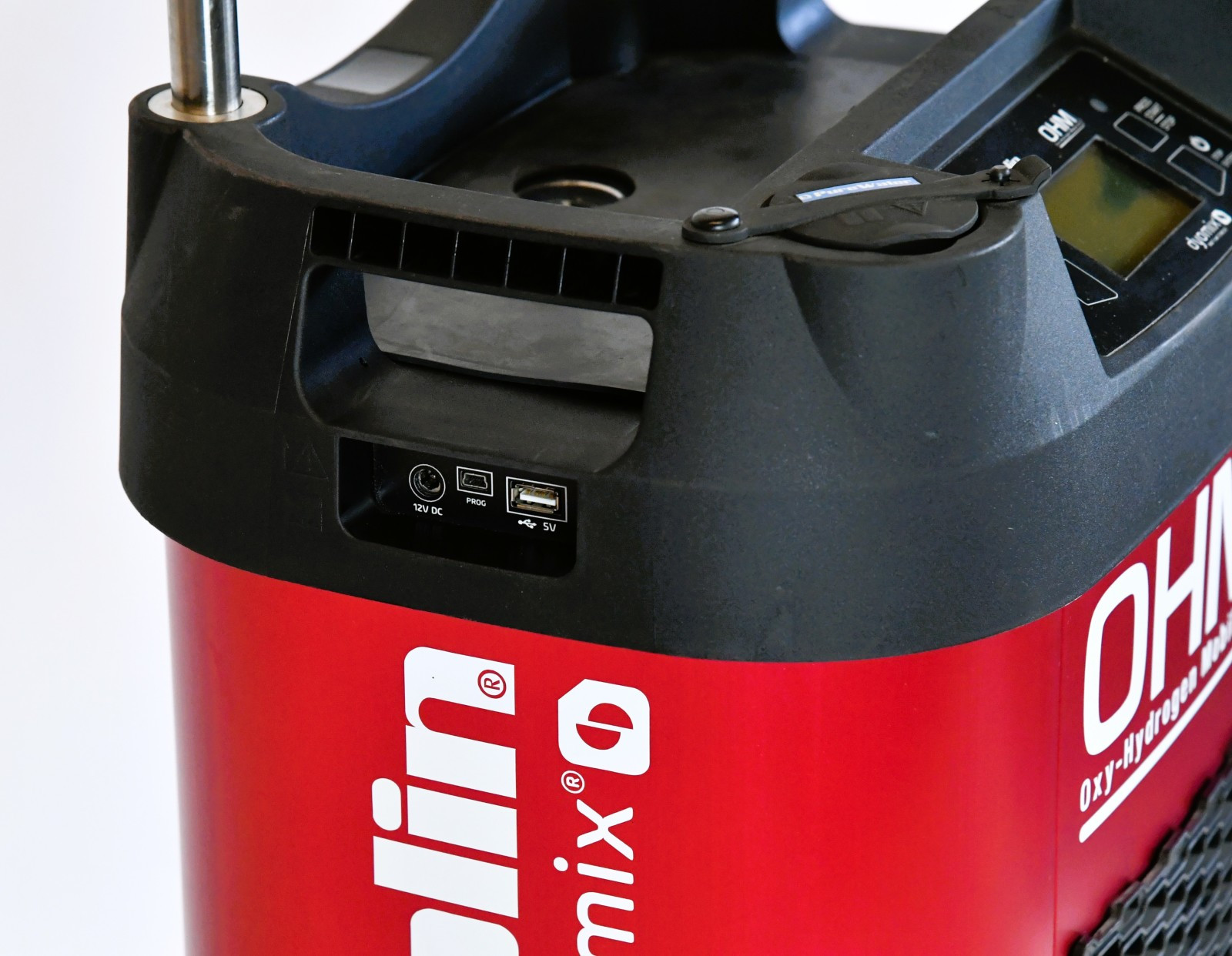

Pictures
